IP430D

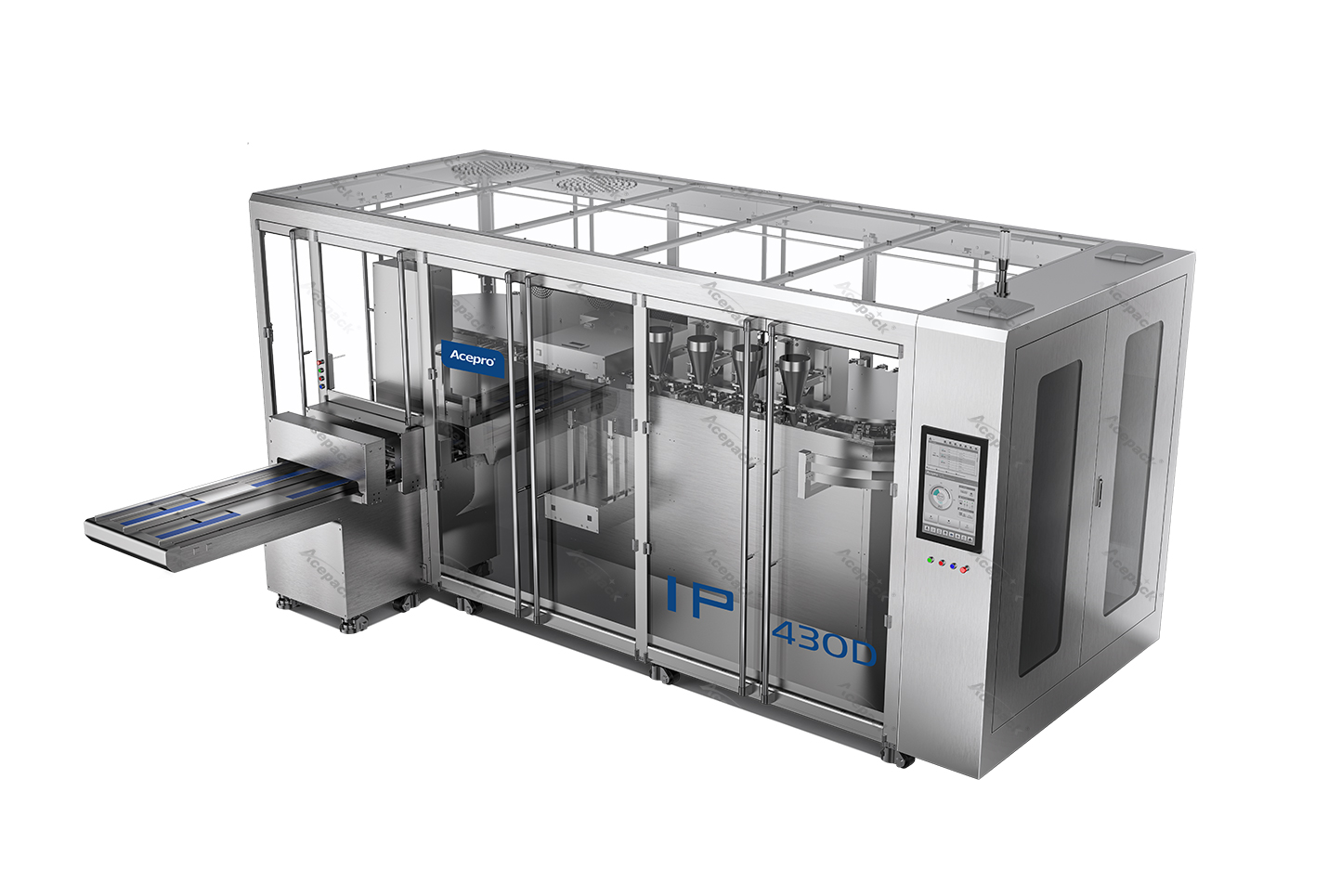

IP-430D Flexible Premade Bag Packaging Machine



The flexible packaging machine produced by Shanghai Acepack has the following advantages:

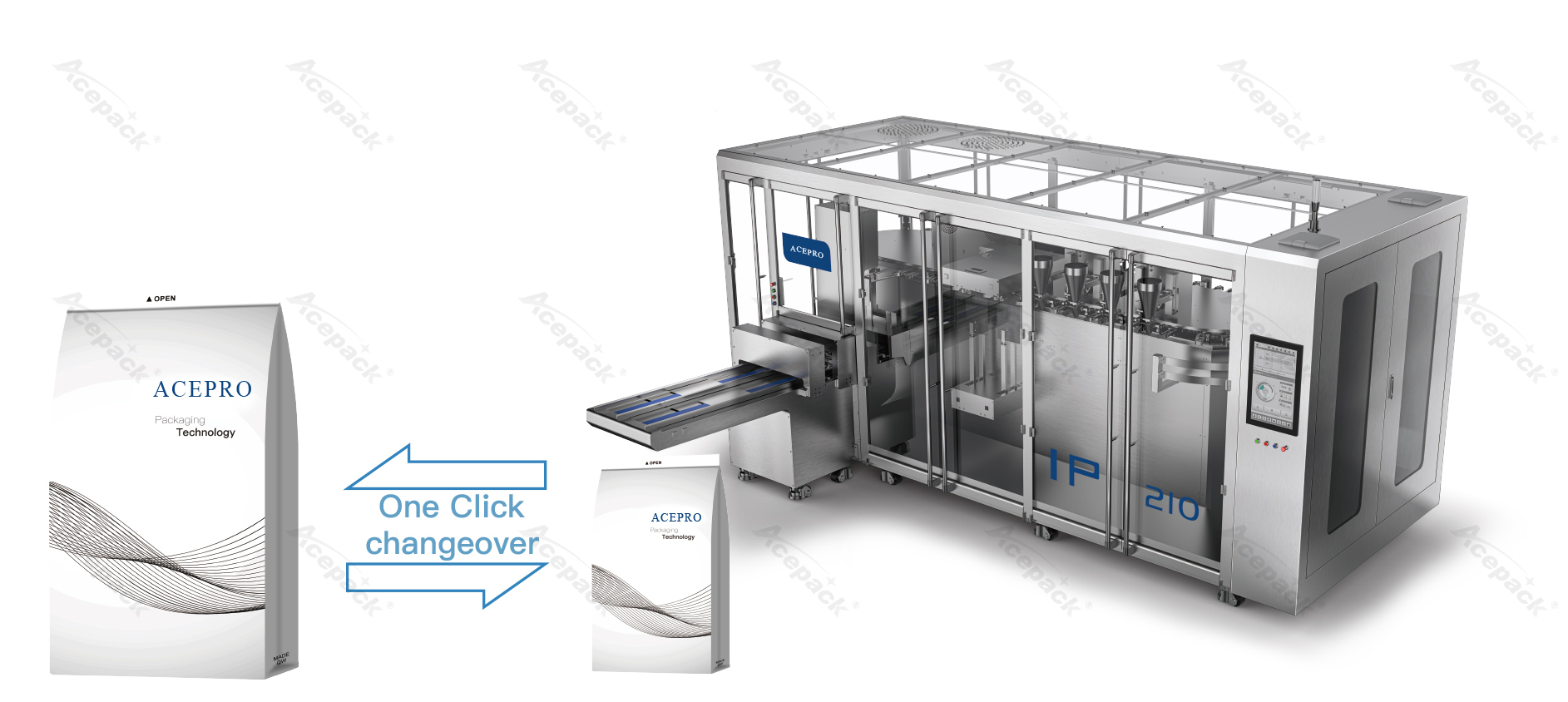

1.One-click change of production


2. Follower-type filling


3. Life cycle management


4. Improve OEE of equipment


5. Compatible with a wide range of sizes


6. 4.0 Human Computer Interaction Interface




Process flow diagram


Model

IP430D IP430DC IP430LC
Pouch Size

90*120(50*2)mm(Min)

215*350(50*2mm(Max)

90*120mm(Min)

215*350mm(Max)

170*200(25*2)mm(Min)

430*1000(75*2)mm(Max)

Filling Capacity
1800ml 1800ml 20000ml
Packaging Capacity 80-120ppm 100-160ppm 10-40ppm
Energy Consumption 14.8kw/h 14.8kw/h 13.6kw/h
Air Consumption 200NL/min 200NL/min 100NL/min
Machine Dimensions(mm)

5100*2010*2320

(Including conveyor belt 3800(W))

(L*W*H)

5700*2010*2320(Including conveyor belt 3800(W))

(L*W*H)

6400*2100*2320(Including conveyor belt 4500(W))

(L*W*H)

Weight 12400kg 12800kg 13000kg


Some customer samples
