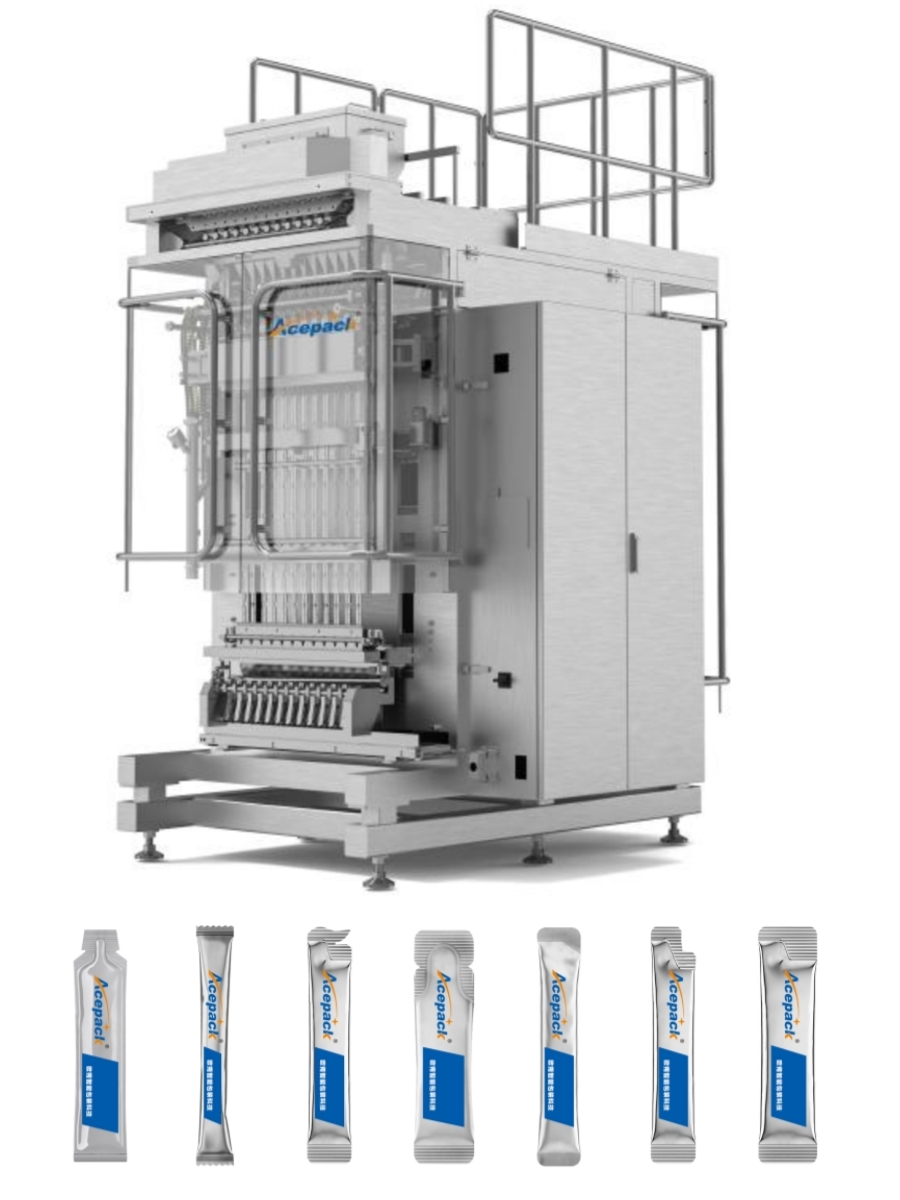

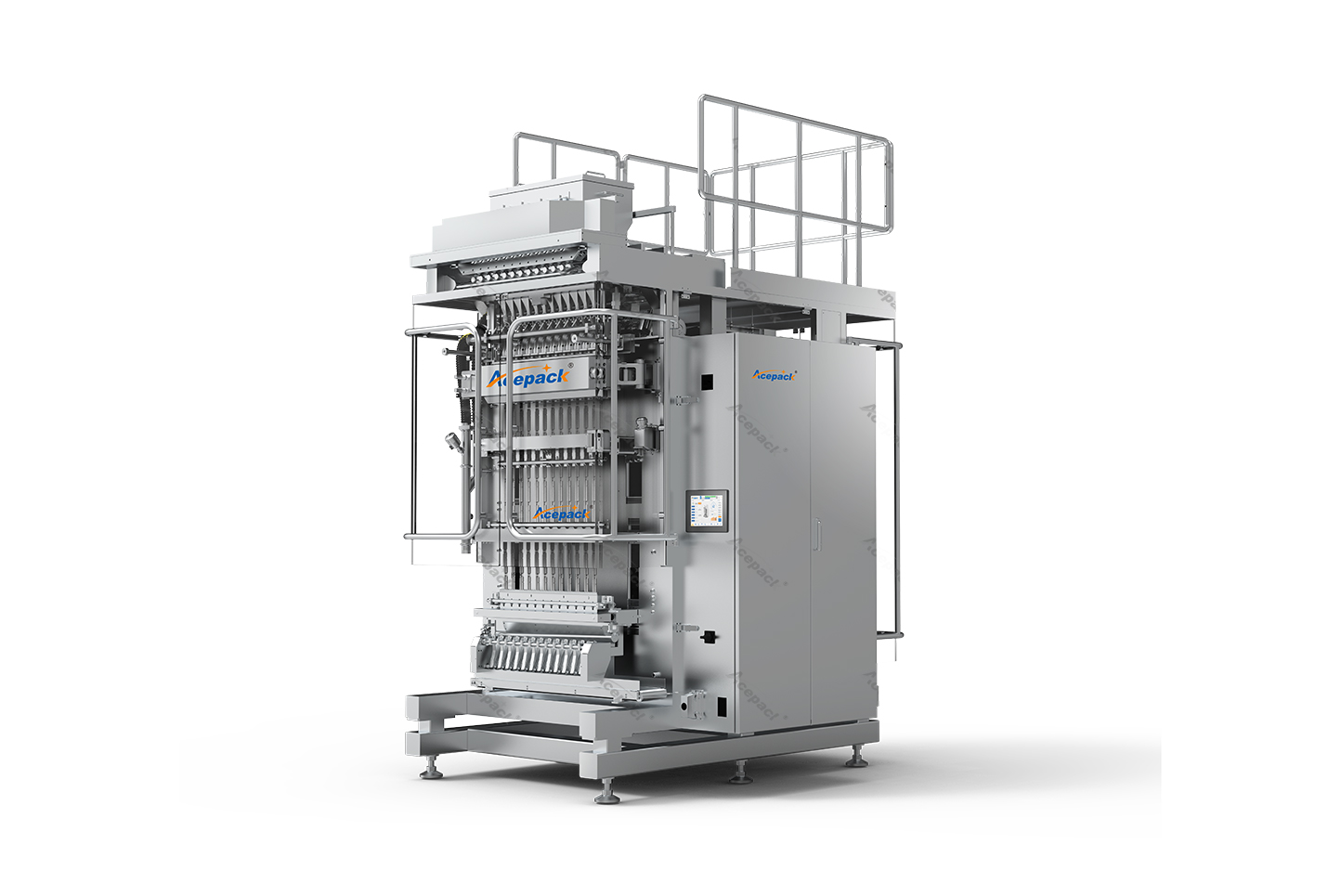

Multi lane sachet packaging machine


Product Video:




Product Description:


Type: Multi-lane Sachet Packaging Machine

Usage: Coffee powder, sugar, honey, ketchup, jam, liquid food...stick sachet packaging.



EQUIPMENT FEATURE AND PARAMETER

It can achieve various customized metering methods

It can meet functions such as audit trails, electronic signatures, and data statistics

Equipped with an 18.5-inch large industrial control screen and a newly designed human-machine interface

Uses a full servo control system to enhance OEE

Complies with EHS management reguirements

Stable speed can reach 70-80 cuts per minute

Equipped with an automatic nitrogen flling function,with residual oxygen controlled within 2%

Can provide customized end-to-end solutions,supporting automation in production for businesses

Process flow diagram

Model

MS-200

MS-500

MS-700

MS-900

Lane number

1-4(Lane)

4-12(Lane)

4-18(Lane)

5-18(Lane)

Measuring Mothod

Ceramic pump   Long screw   Short screw   Volumetric Cup   electronic granulation counter

Capecity

40-80 bags/Lane/minute

Fillingcapacity

powder:0.5-50g      Granule:0.5~30g    liquid:5-50ml  Pills、tablets:1-120pc

Sachet size

L:60-180mm   W:15-70mm

Film width



Max.260mm



Max.500mm



Max.750mm



Max.980mm

Sealing type

Back sealing/Stick bag

Cutting type



Straight cutting  Zig zag cutting  Round corner cutting Die-cut

Air&Power



0.8Mpa/0.8-1.2m3/min;3.5-20kw

Dimension&weight



1750*1100mm/1300kg



2400*1550mm/3000kg



2400*1800mm/3200kg



2400*2050mm/3500kg

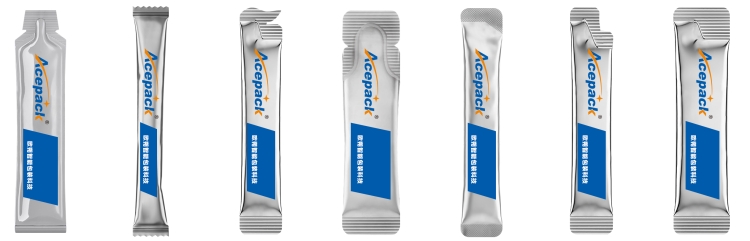

Some customer samples
