Flexible Packaging Machine-Made By Acepack China

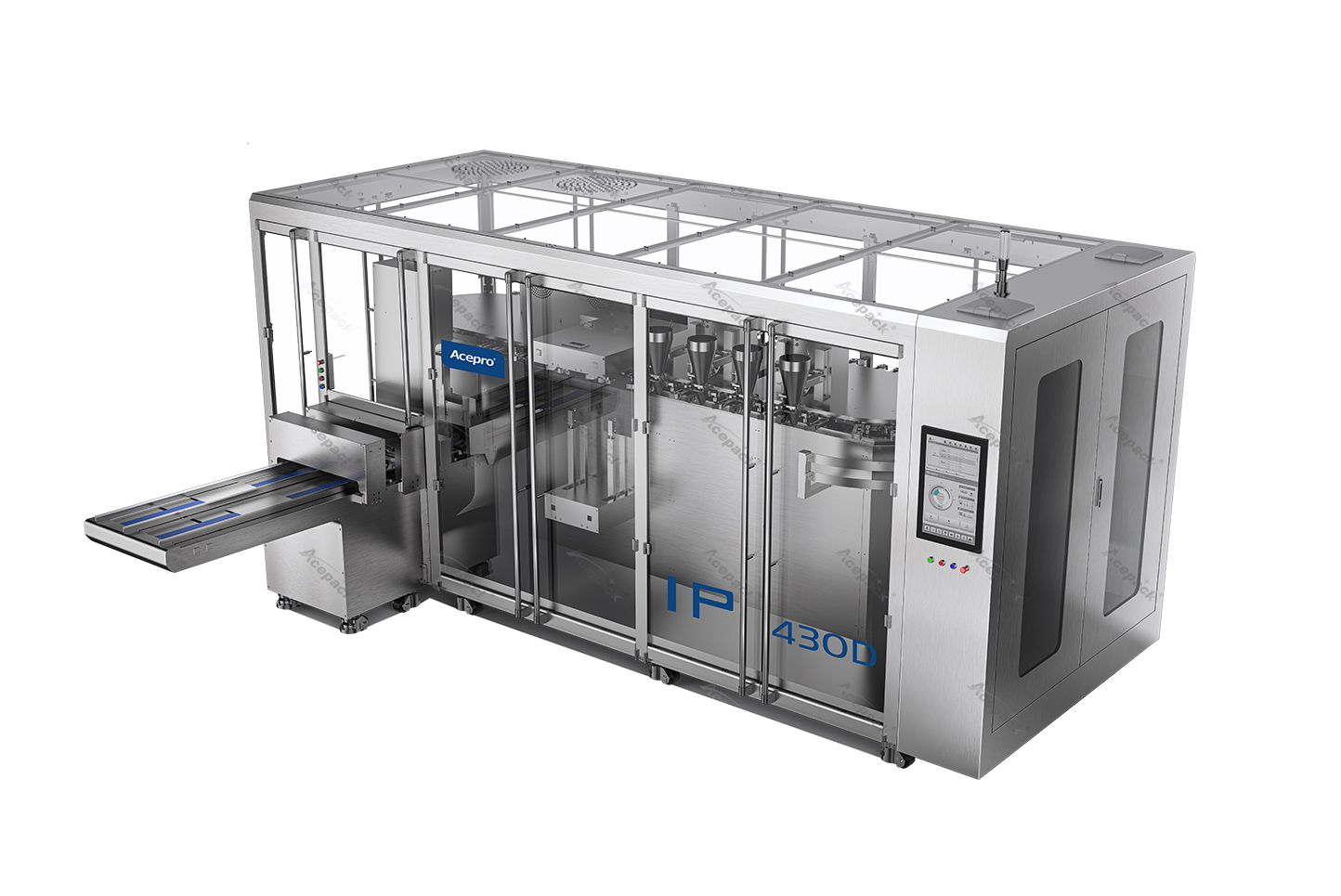

IP-430D Flexible Premade Bag Packaging Machine
The flexible packaging machine produced by Shanghai Acepack has the following advantages:
1.One-click change of production
2. Follower-type filling
3. Life cycle management
4. Improve OEE of equipment
5. Compatible with a wide range of sizes
6. 4.0 Human Computer Interaction Interface
Model |
IP430D | IP430DC | IP430LC |
| Pouch Size |
90*120(50*2)mm(Min) 215*350(50*2mm(Max) |
90*120mm(Min) 215*350mm(Max) |
170*200(25*2)mm(Min) 430*1000(75*2)mm(Max) |
| Filling Capacity |
1800ml | 1800ml | 20000ml |
| Packaging Capacity | 80-120ppm | 100-160ppm | 10-40ppm |
| Energy Consumption | 14.8kw/h | 14.8kw/h | 13.6kw/h |
| Air Consumption | 200NL/min | 200NL/min | 100NL/min |
| Machine Dimensions(mm) |
5100*2010*2320 (Including conveyor belt 3800(W)) (L*W*H) |
5700*2010*2320(Including conveyor belt 3800(W)) (L*W*H) |
6400*2100*2320(Including conveyor belt 4500(W)) (L*W*H) |
| Weight | 12400kg | 12800kg | 13000kg |
