SF-360D

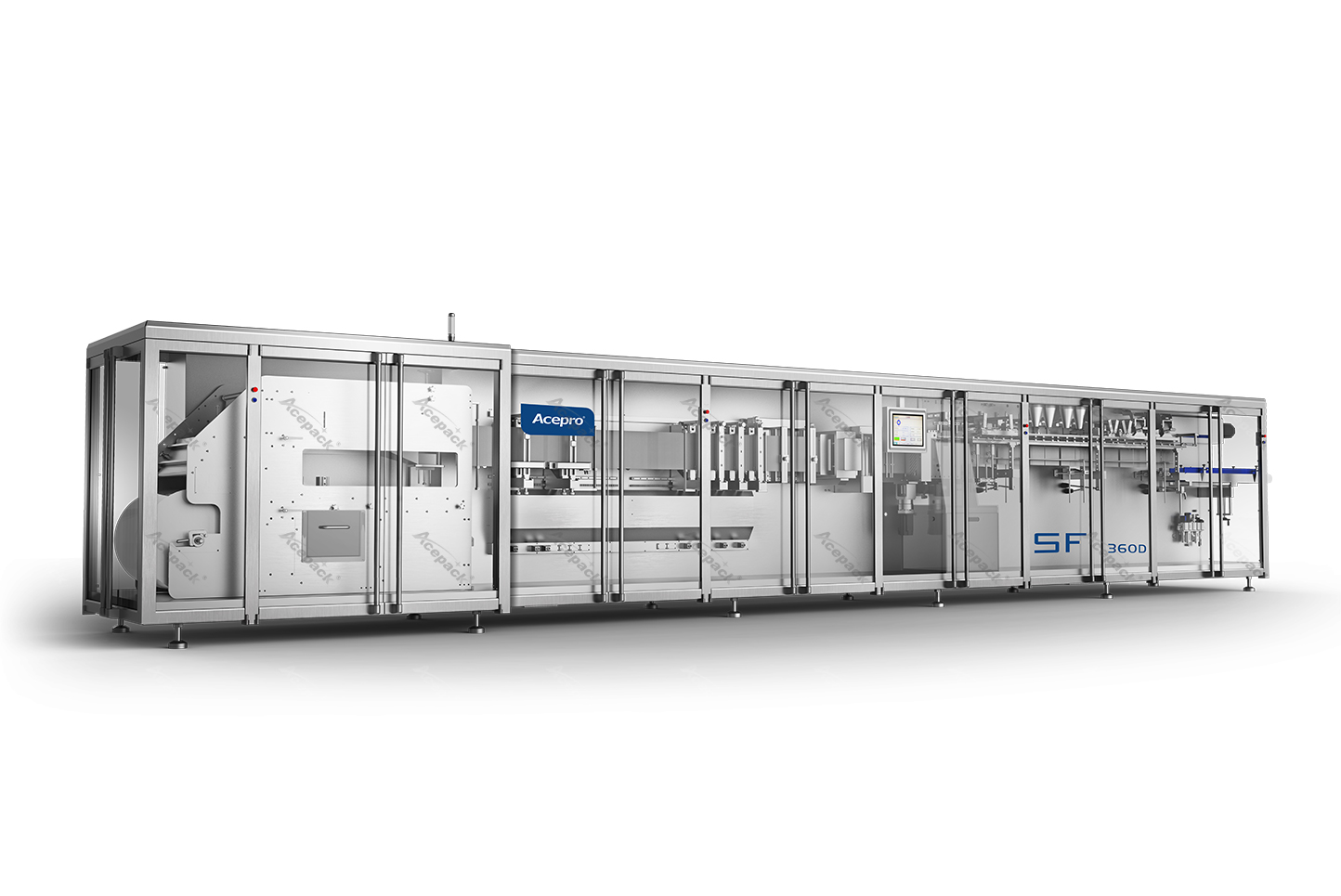

SF-360D HFFS Packaging Machine




EQUIPMENT FEATURE AND PARAMETER:


1. Data retrieval ability with one-button switching facility

2. Fully servo structure, simpler and more stable, less noise

3. Servo-followed Poistioning sealing, reduce allowable sealing error and improves aesthetics of packaging

4. Adopts a Fully new control system to improve the comprehensive rate of OEE equipment

5. Equipped with running mechanism monitoring function, adding better security

6. The equipment is more intelligent which reduces the requirements for operators

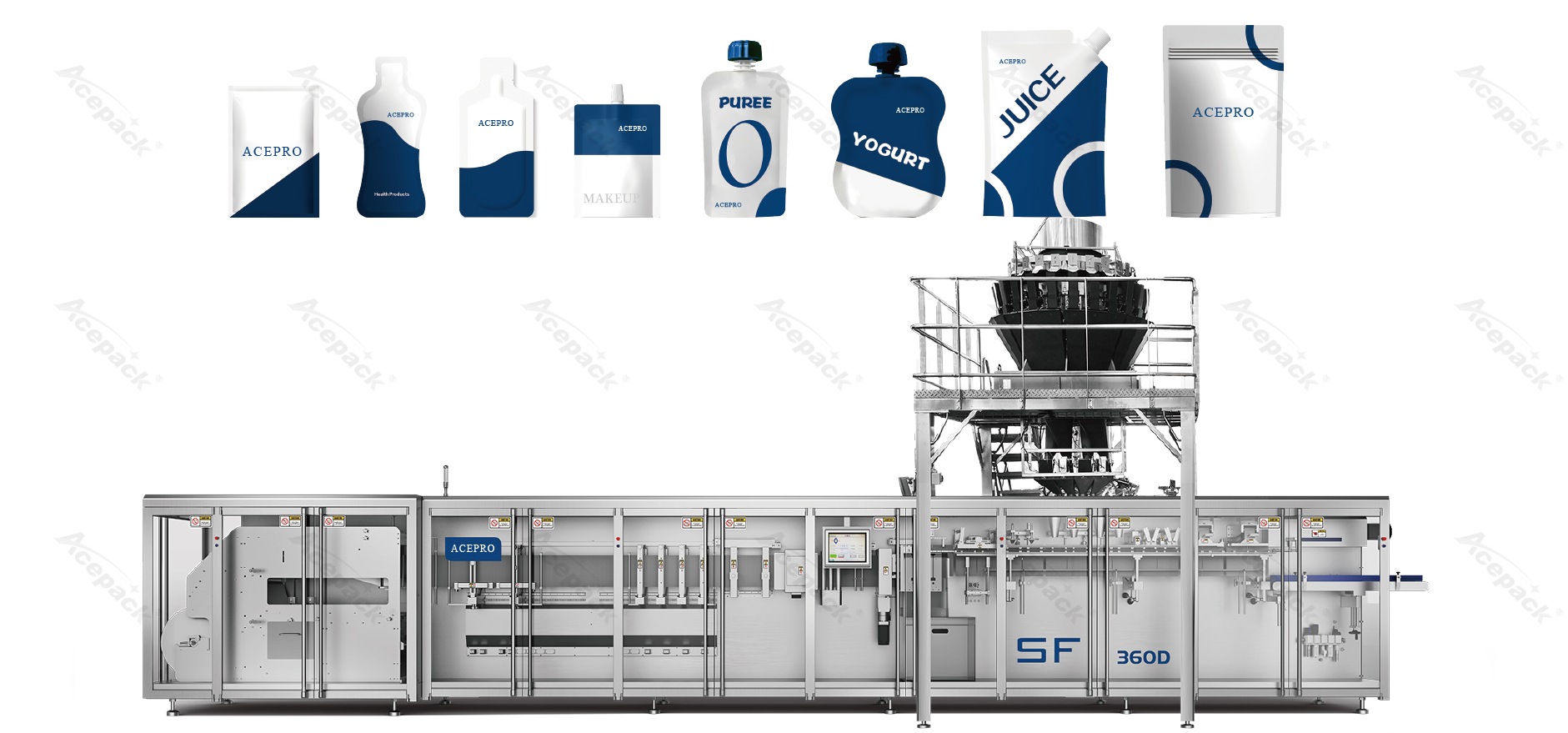

Process flow diagram


Model  SF-360D
Pouch Size
 80*110(Min)/180*270(Max)
Filling Capacity  1200ml
Packaging Capacity  100-140ppm
Energy Consumption
 17.2kw/h
Air Consumption  300NL/min
Machine Dimensions
 11000*2450*1700(L*W*H)
Weight 8000kg
Some customer samples
