Acepack packaging machine serves you better package!
Product Description:

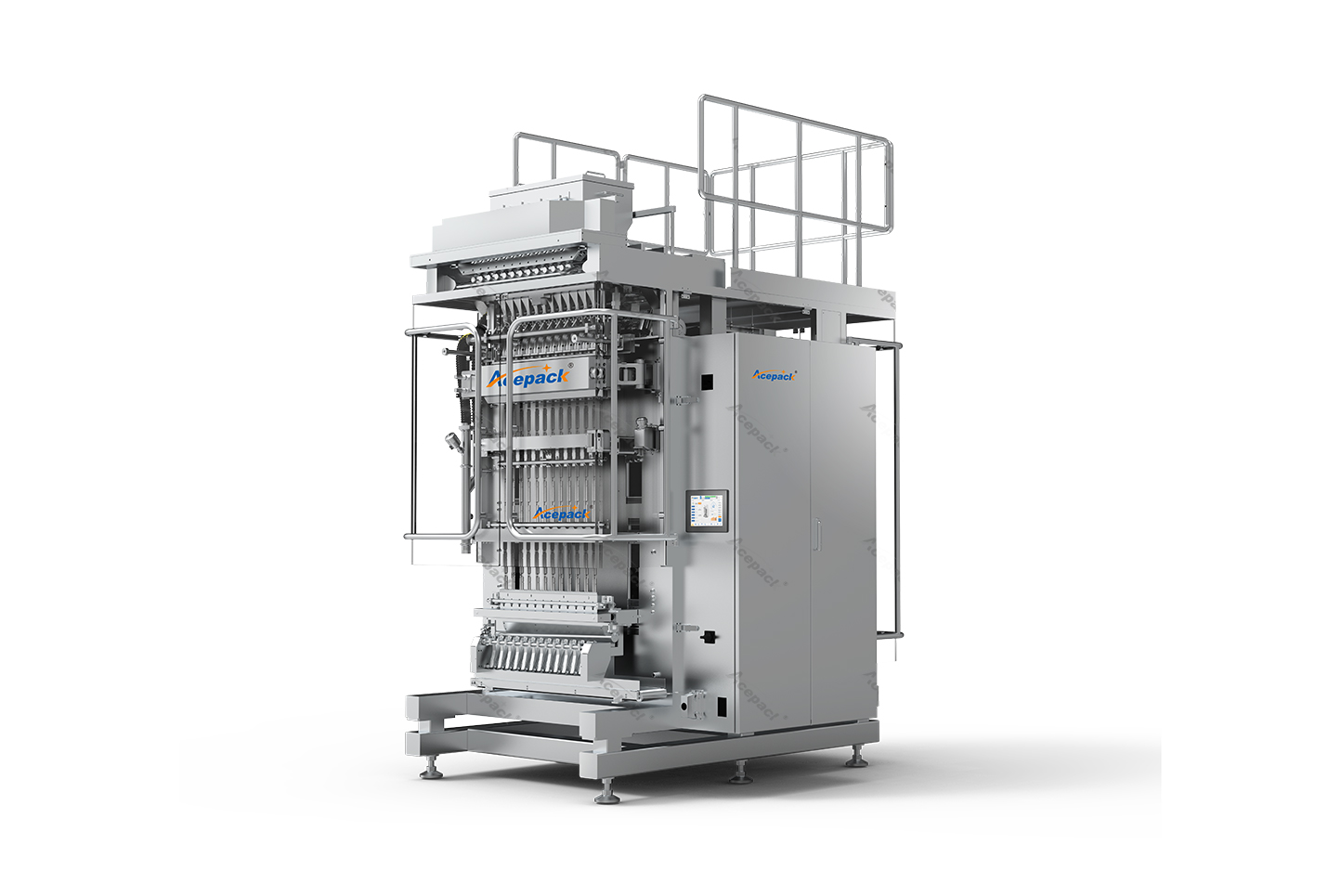

Multi lane sachet packaging machine
Type: Multi-lane Sachet Packaging Machine
Usage: Coffee powder, sugar, honey, ketchup, jam, liquid food...stick sachet packaging.
EQUIPMENT FEATURE AND PARAMETER
It can achieve various customized metering methods
It can meet functions such as audit trails, electronic signatures, and data statistics
Equipped with an 18.5-inch large industrial control screen and a newly designed human-machine interface
Uses a full servo control system to enhance OEE
Complies with EHS management reguirements
Stable speed can reach 70-80 cuts per minute
Equipped with an automatic nitrogen flling function,with residual oxygen controlled within 2%
Can provide customized end-to-end solutions,supporting automation in production for businesses
Model |
MS-200 |
MS-500 |
MS-700 |
MS-900 |
|
Lane number |
1-4(Lane) |
4-12(Lane) |
4-18(Lane) |
5-18(Lane) |
|
Measuring Mothod |
Ceramic pump Long screw Short screw Volumetric Cup electronic granulation counter |
|||
|
Capecity |
40-80 bags/Lane/minute |
|||
|
Fillingcapacity |
powder:0.5-50g Granule:0.5~30g liquid:5-50ml Pills、tablets:1-120pc |
|||
|
Sachet size |
L:60-180mm W:15-70mm |
|||
|
Film width |
Max.260mm |
Max.500mm |
Max.750mm |
Max.980mm |
|
Sealing type |
Back sealing/Stick bag |
|||
|
Cutting type |
Straight cutting Zig zag cutting Round corner cutting Die-cut |
|||
|
Air&Power |
0.8Mpa/0.8-1.2m3/min;3.5-20kw |
|||
|
Dimension&weight |
1750*1100mm/1300kg |
2400*1550mm/3000kg |
2400*1800mm/3200kg |
2400*2050mm/3500kg |
