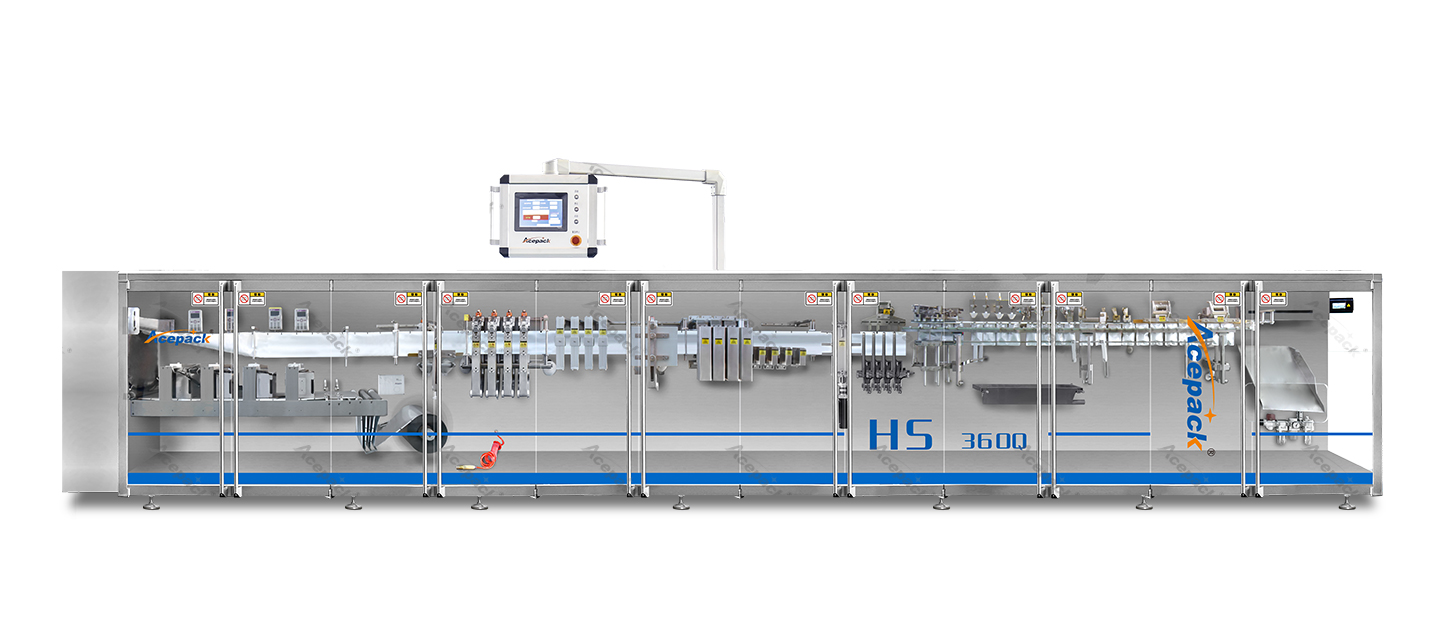

High Speed Flat Pouch Packaging Machine（Swifty bagger）
The horizontal high-speed packaging model can be adapted to various heat-sealing multi-layer composite films. The machine produces multiple bags at a time, adopts a newly designed multi-bagging mechanism, and is a multi-functional model integrating bag making, measuring and filling. The ideal packaging solution for packaging.
Product parameters
| Model | HS-360Q |
| Maximum Packing Volume | 100ml |
| Max Pouch Size | 90mm*180mm |
| Min Pouch Size | 60mm*90mm |
| Packing Speed | 200-320ppm |
| Air Consumption | 400NL/min |
|
Input Power | 11.5kw |
| Working Power Supply | AC 380V 50Hz |
| Equipment Weight | 3000kg |
| L*W*H | 6440*970*1290mm |
| （1） Film Unwind | （5） Vertical Seal |
（9）Cutting |
（13）Filling II | （17）Output |
| （2） Pouch Forming | （6）Tear Notch |
（10）Pouch Mechanism |
（14）Pouch Stretching | |
| （3） Film Guide | （7）Photocell |
（11）Pouch Opening |
（15）Heat Sealing | |
| （4） Bottom Seal | （8）Servo Advance |
（12）Filling I |
（16）Finished Product |
