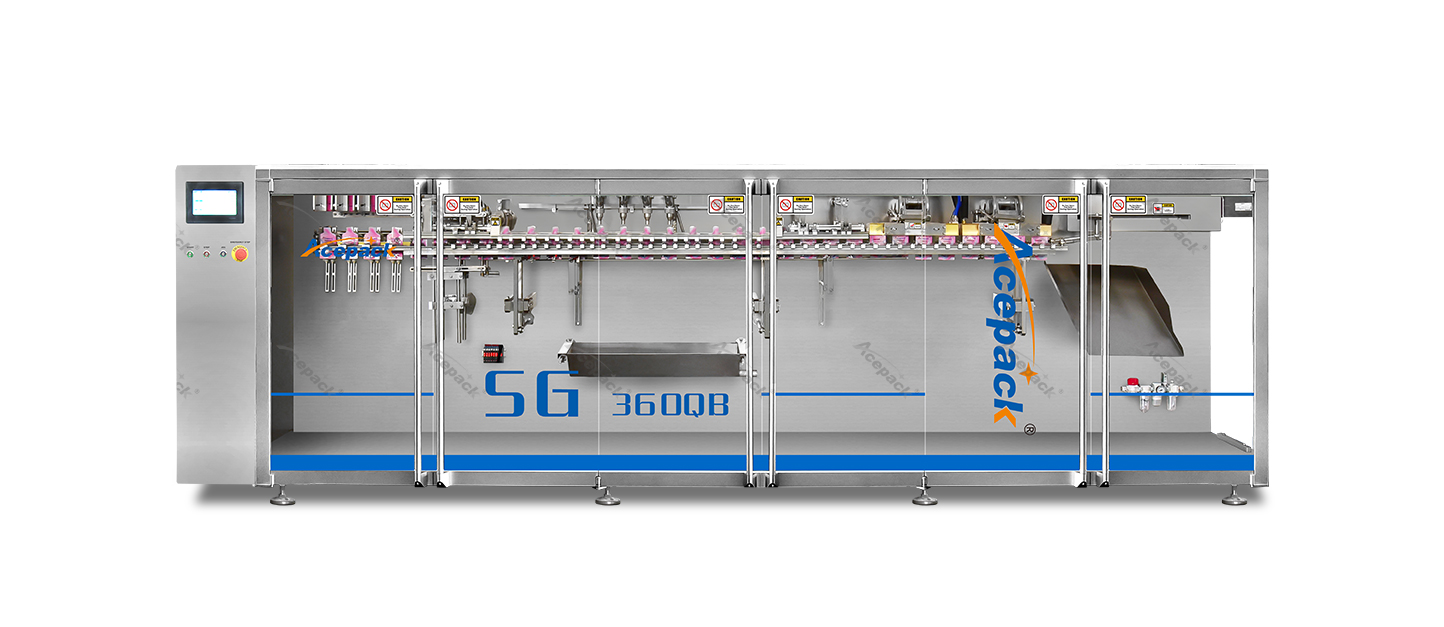

Special-Shaped Pre-made Pouch Packing Machine
Main application market: functional customized and convenient packaging related to big health drinks such as oral hyaluronic acid, collagen peptides, and concentrated puree. The shape of the outer bag can achieve customized needs, enhance product highlights, and increase the added value of products.
Product parameters
| Model | SG-180B | SG-180DB |
SG-360QB |
| Maximum Packing Volume | 1200ml | 100ml |
100ml |
| Max Pouch Size | 180mm*310mm | 90mm*310mm |
90mm*310mm |
| Min Pouch Size | 60mm*80mm | 60mm*80mm |
60mm*80mm |
| Packing Speed | 30-60ppm | 80-100ppm |
160-200ppm |
| Air Consumption | 200NL/min | 200NL/min |
500NL/min |
|
Input Power | 1.8kw | 1.8kw |
3.6Kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 700kg | 800kg | 1600kg |
| L*W*H | 1990*970*1390mm | 1980*970*1400mm | 4480*970*1400mm |
| （1） Premade Pouch Stack | （2）Pouch Opening |
（3）Filling |
（4）Pouch Stretching | （5）Heat Sealing |
| （6） Cool Sealing | （7）Finished Product |
