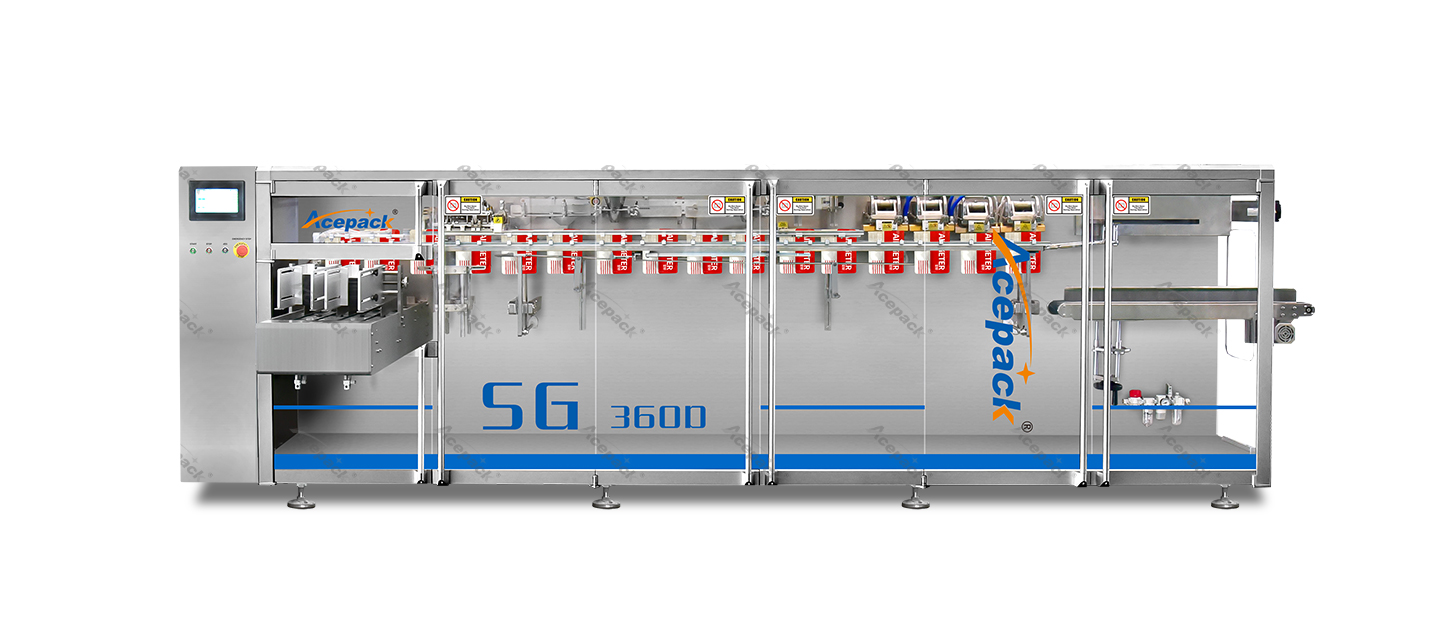

Standard Premade stand up pouch packaging machine
Standard Premade stand up pouch packaging machine has flexible functional applications, such as adding hanging holes, special shapes, zippers, spout etc., and is widely used in salt, lubricating oil, beverages (health drinks, such as wolfberry puree, sea buckthorn puree, collagen peptide, etc.), fruit juice, Packaging types such as yogurt, sauces, edible oils, and washing and care series. Premade stand up pouch packaging machine can also be used for inner and outer bag packaging, or bag-type packaging for small bags into large bags. The packaging material can be selected from aluminum foil bags or composite films.
Product parameters
| Model | SG-180 | SG-210 |
SG-240 | SG-280 | SG-360D |
| Maximum Packing Volume | 1200ml | 1600ml |
2000ml | 3000ml | 1200ml |
| Max Pouch Size | 180mm*310mm | 210mm*310mm |
240mm*350mm | 280mm*400mm | 180mm*310mm |
| Min Pouch Size | 60mm*80mm | 90mm*110mm |
90mm*120mm | 90mm*120mm | 90mm*110mm |
| Packing Speed | 30-60ppm | 30-60ppm |
30-60ppm | 30-60ppm | 60-120ppm |
| Air Consumption | 200NL/min | 200NL/min |
400NL/min | 400NL/min | 500NL/min |
|
Input Power | 1.8kw | 2.8kw |
3.4kw | 5.5kw | 4.5kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 700kg | 900kg | 1040kg | 1800kg | 2000kg |
| L*W*H | 1990*970*1390mm | 2700*970*1400mm | 3100*1010*1400mm | 4100*1020*1500mm | 4055*980*1400mm |
| （1） Pouch Feeding Conveyor | （2）Filp-Out Pouch-Picking |
（3）Pouch Opening |
（4）Air Flushing | （5）Photocell |
| （6） Filling I | （7）Filling II |
（8）Pouch Stretching |
（9）Heat Sealing | （10）Cool Sealing |
| （11）Finished Product | （12）Outlet |
|
