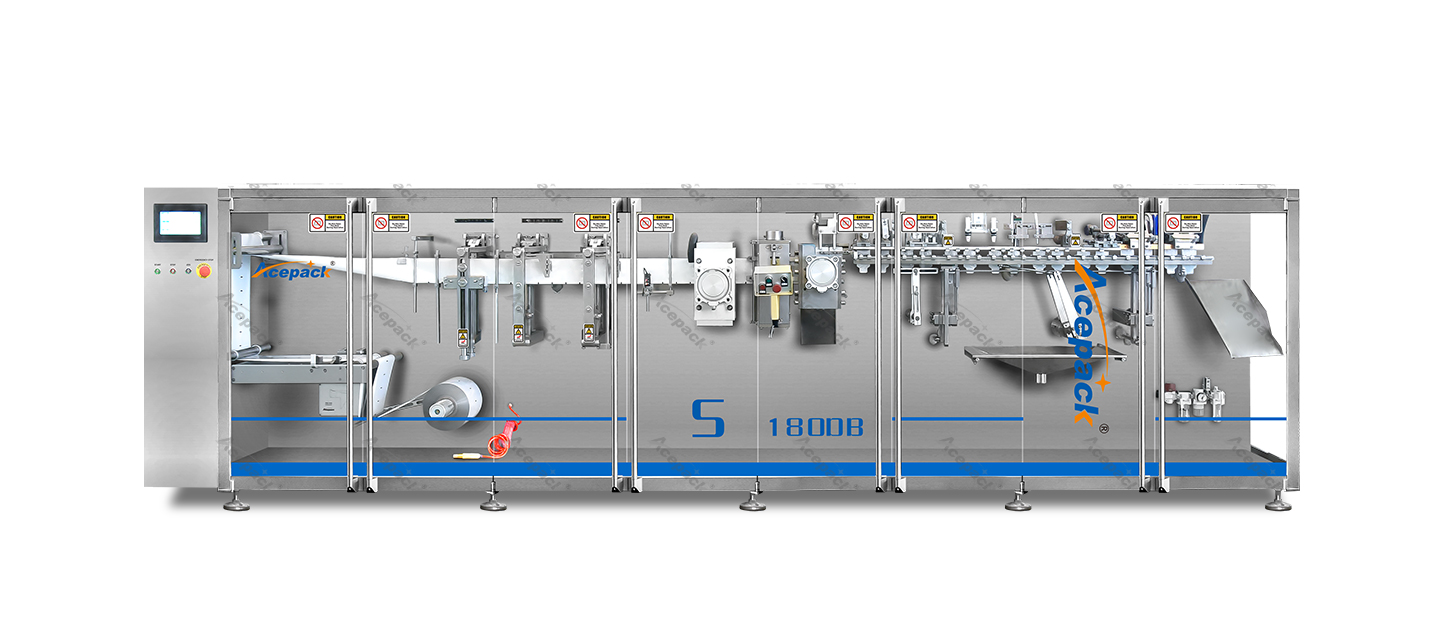

Shaped Flat Sachet Packaging Filling Machine
The special-shaped sachet bag packaging Filling machine is a basic model designed for the special-shaped packaging of small bags. The packaging effect is beautiful and the equipment is flexible. It is widely used in packaging types such as enzymes, fruit and vegetable drinks, bird's nest direct drinks, functional drinks, puree, lactic acid bacteria, and collagen liquid.
Product parameters
| Model | S-130B | S-180DB |
| Maximum Packing Volume | 260ml | 150ml |
| Max Pouch Size | 140mm*220mm | 90mm*180mm |
| Min Pouch Size | 50mm*80mm | 60mm*100mm |
| Packing Speed | 40-80ppm | 80-120ppm |
| Air Consumption | 300NL/min | 300NL/min |
|
Input Power | 3.5kw | 8.3kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz |
| Equipment Weight | 1000kg | 2200kg |
| L*W*H | 2990*970*1500mm | 5330*970*1400mm |
| （1） Film Unwind | （5） Vertical Seal |
（9） Servo Advance |
（13）Pouch Opening | （17）Heat Sealing |
| （2） Pouch Forming | （6） Vertical Cooling |
（10）Form Punching |
（14）Filling I | （18）Cool Sealing |
| （3） Film Guide | （7） Photocell |
（11）Pouch Mechanism |
（15）Filling II | （19）Finished Product |
| （4） Bottom Seal | （8） Flanging |
（12）Pouch Sorting |
（16）Pouch Stretching |
