Twin-sachet Pouch Packing Machine
The Twin- Link Pouch Packing Machine has a simple mechanical design and is an economical solution to realize small bags packaging.
Product parameters
Model: S-110T
Maximum Filling Capacity:60ML
Pouch Size:
110mm*120mm(Max.); 50mm*50mm(Min)
Packing Speed: 40-80ppm;
Air Consumption:100NL/min
Working Power Supply: AC 380V 50Hz, 2.5KW
Machine Dimensions and Weight:
2200*750*1400mm; 700KG

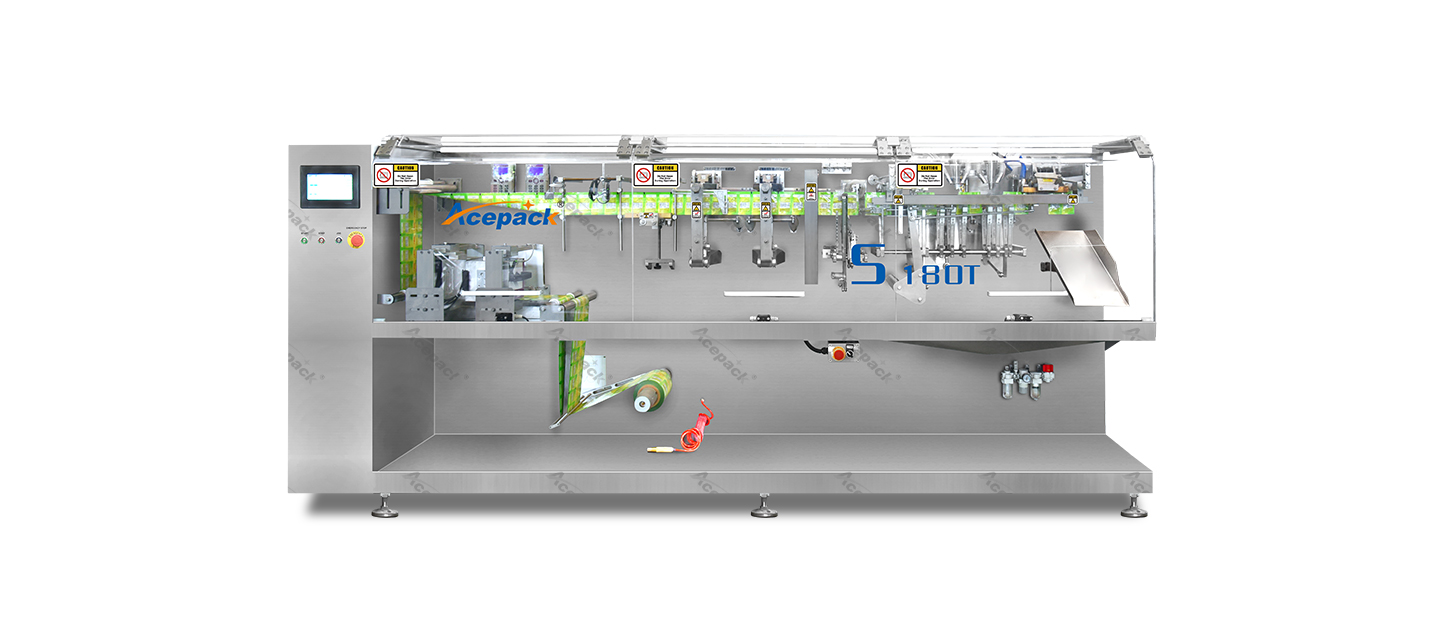

Model: S-180T
Maximum Filling Capacity:100ML
Pouch Size:
90mm*180mm(Max.); 50mm*180mm(Min)
Packing Speed: 100-160ppm;
Air Consumption:200NL/min
Working Power Supply: AC 380V 50Hz, 4.5KW
Machine Dimensions and Weight:
3500*970*1500mm; 1160KG
| （1） Film Unwind | （5）Bottom Seal |
（9）Tear Notch |
（13）Filling I | （17）Output |
| （2） Pouch Forming | （6）Vertical Seal |
（10）Cutting |
（14）Filling II | |
| （3） Film Guide | （7）Vertical Cooling |
（11）Pouch Pulling |
（15）Heat Sealing | |
| （4） Photocell | （8）Virtual Knife Device |
（12）Pouch Opening |
（16）Finished Product |
