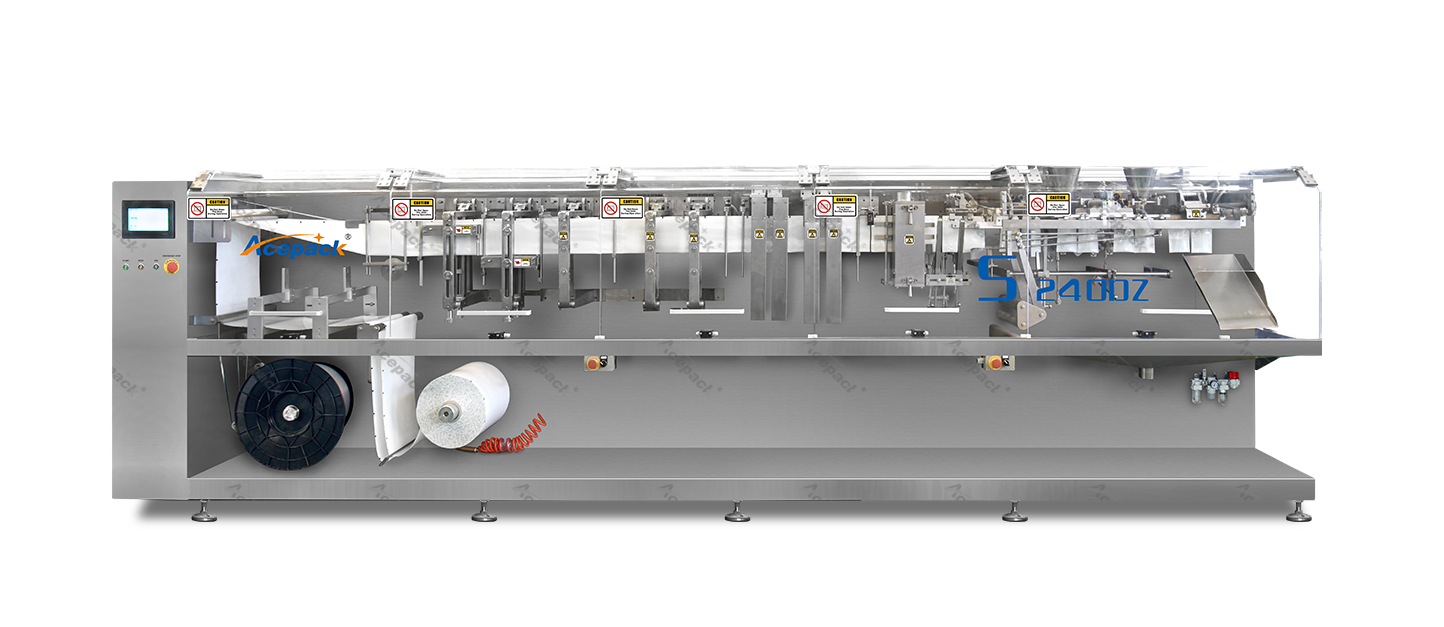

Zipper Flat Sachet Packaging Machine
The zipper flat Sachet packaging machine series is specially designed for small bag and middle bag packaging. It has double-station blanking, and can be customized with functions such as hanging holes and zippers. It is suitable for a large number of canned packaging types such as granules and powders.
Product parameters
| Model | S-180Z | S-240Z |
S-240DZ |
| Maximum Packing Volume | 400ml | 1000ml |
180ml |
| Max Pouch Size | 180mm*225mm | 240mm*310mm |
120mm*225mm |
| Min Pouch Size | 50mm*80mm | 100mm*120mm |
65mm*80mm |
| Packing Speed | 40-80ppm | 30-60ppm |
100-160ppm |
| Air Consumption | 200NL/min | 300NL/min |
200NL/min |
|
Input Power | 5.5kw | 7.5kw |
6.5Kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 1600kg | 2300kg | 2000kg |
| L*W*H | 4660*970*1500mm | 5400*970*1500mm | 4590*970*1500mm |
| （1） Film Unwind | （5） Film Guide |
（9）Tear Notch |
（13）Pouch Catching | （17）Heat Sealing |
（2） Zipper Mechannism | （6）Bottom Seal |
（10）Photocell |
（14）Pouch Opening | （18）Finished Product |
| （3） Pouch Forming | （7）Vertical Seal I | （11）Servo Advance | （15）Filling I | （19）Output |
（4） Zipper Seal | （8）Vertical Seal II |
（12）Cutting | （16）Filling II |
