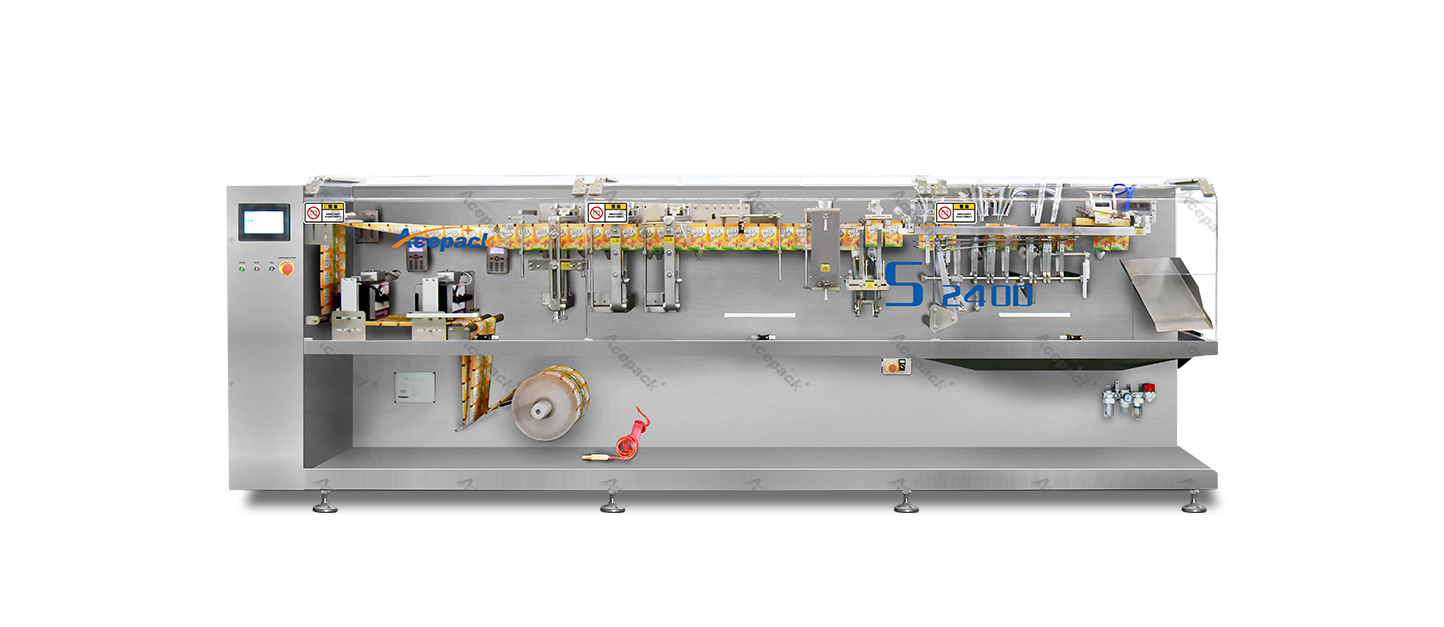

Standard Flat Sachet Packaging Filling Machine
It can adapt to various heat-sealing multi-layer composite films. It can automatically complete the process of pouch forming, bag making, loading and unloading and filling and packaging. It is an overall packaging solution for fast packaging of pouches. The series of pouch packaging models are specially designed for three-side sealing Or four-side sealed flat bag, formed by roll film, liquid or solid filling, hot top sealing. It can realize the packaging of standard three-side or four-side sealed flat bag, flat bag with zipper, flat bag with straight suction nozzle or diagonal suction nozzle automatic packaging.
Product parameters
| Model | S-110 | S-130 | S-180 | S-180D | S-240 | S-240D | S-360D |
| Maximum Packing Volume | 60ml | 260ml |
400ml | 100ml | 1000ml | 180ml | 400ml |
| Max Pouch Size | 110mm*120mm | 140mm*220mm |
180mm*225mm | 90mm*180mm | 240mm*310mm | 120mm*225mm | 180mm*225mm |
| Min Pouch Size | 50mm*50mm | 50mm*80mm |
50mm*80mm | 50mm*80mm | 100mm*120mm | 65mm*80mm | 65mm*80mm |
| Packing Speed | 40-80ppm | 40-80ppm |
40-80ppm | 120-160ppm | 30-60ppm | 100-160ppm | 80-120ppm |
| Air Consumption | 0NL/min | 100NL/min |
200NL/min | 200NL/min | 300NL/min | 200NL/min | 500NL/min |
|
Input Power | 2kw | 3.5kw |
4.5kw | 4.5kw | 5.5kw | 5.5kw | 10.5kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 520kg | 900kg | 1400kg | 1500kg | 2000kg | 1800kg | 2500kg |
| L*W*H | 2060*750*1400mm | 2850*970*1500mm | 3500*970*1500mm | 3550*970*1500mm | 4680*1000*1300mm | 4290*970*1500mm | 7070*970*1290mm |
| （1） Film Unwind | （5）Vertical Seal I |
（9）Servo Advance |
（13）Filling I | （17）Output |
| （2） Pouch Forming | （6）Vertical Seal II |
（10）Cutting |
（14）Filling II | |
| （3） Film Guide | （7）Tear Notch |
（11）Pouch Catching |
（15）Heat Sealing | |
| （4）Bottom Seal | （8）Photocell |
（12）Pouch Opening |
（16）Finished Product |
