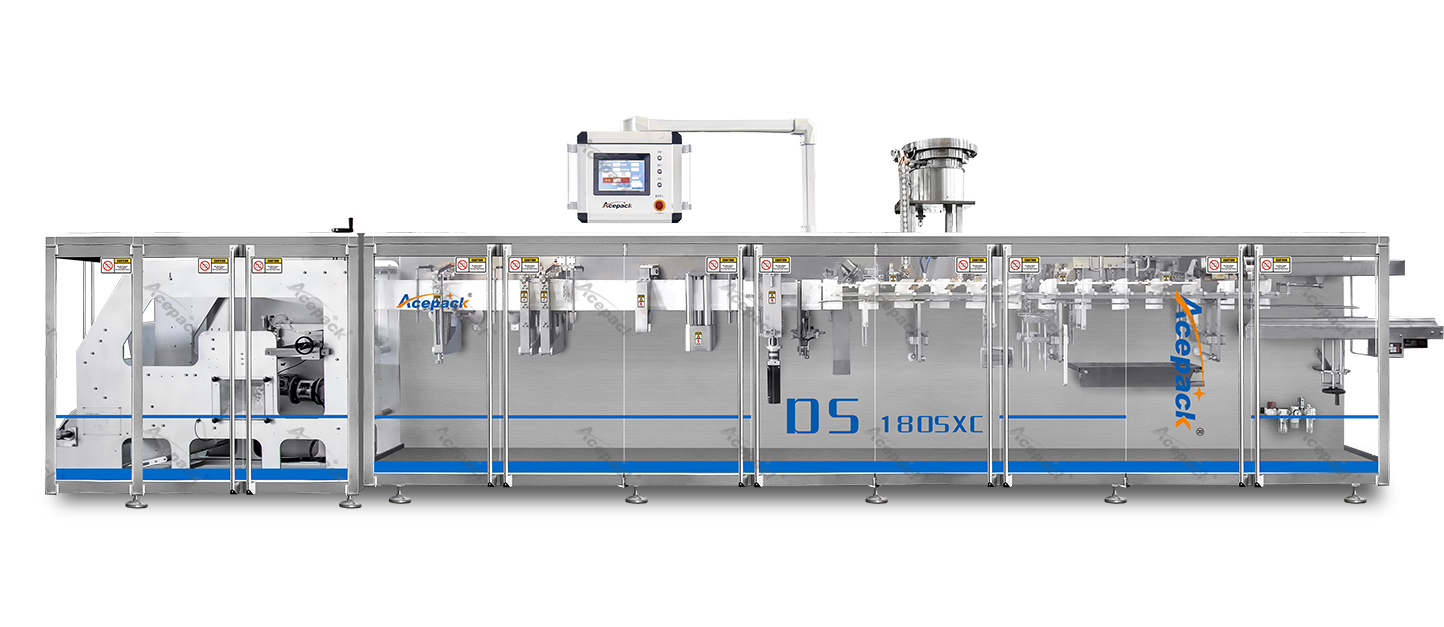

Corner Spout stand pouch filling machine
*Full-servo double-out roll film design can save 30%-50% of packaging costs
*The design of adding the mouth first and then filling, the suction nozzle is pollution-free and compatible with the filling of pulp particles *The independent sealing design of the suction nozzle can avoid deformation and damage caused by capping
*Easy to clean, easy to maintain, easy to maintain, stable and durable
*It can be operated by one person without manual threading of the bag pole, which greatly reduces labor costs
Product parameters
| Model | DS-180SXC |
DS-240SXC |
DS-280DSXC |
| Maximum Packing Volume | 1200ml |
2000ml |
800ml |
| Max Pouch Size | 180*260mm |
240*350mm |
140*260mm |
| Min Pouch Size | 110*120mm |
110*180mm |
110*120mm |
| Packing Speed | 40-60ppm |
30-60ppm |
80-120ppm |
| Air Consumption | 250NL/min |
350NL/min |
800NL/min |
|
Input Power | 9kw |
11kw |
13.2Kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 2500kg |
3000kg |
5250kg |
| L*W*H | 6970*1100*1400mm | 7900*1250*1550mm | 9400*1500*1800mm |
| （1） Film Unwind | （7）Vertical Seal II |
（13）Slant Opening Cutting |
（19）Air Flushing | （25）Finished Product |
| （2） Bottom Hole Punching | （8）Photocell |
（14）Pouch Opening I |
（20）Filling I | （26）Output |
| （3） Pouch Forming | （9）Servo Advance |
（15）Vibrator |
（21）Filling II | |
| （4） Film Guide | （10）Cutting |
（16）Spout Inserting |
（22）Pouch Stretching | |
| （5）Bottom Seal | （11）Pouch Catching I |
（17）Spout Seal |
（23）Top Seal I | |
| （6）Vertical Seal I | （12）Pouch Catching II | （18）Pouch Opening II | （24）Top Seal II |
