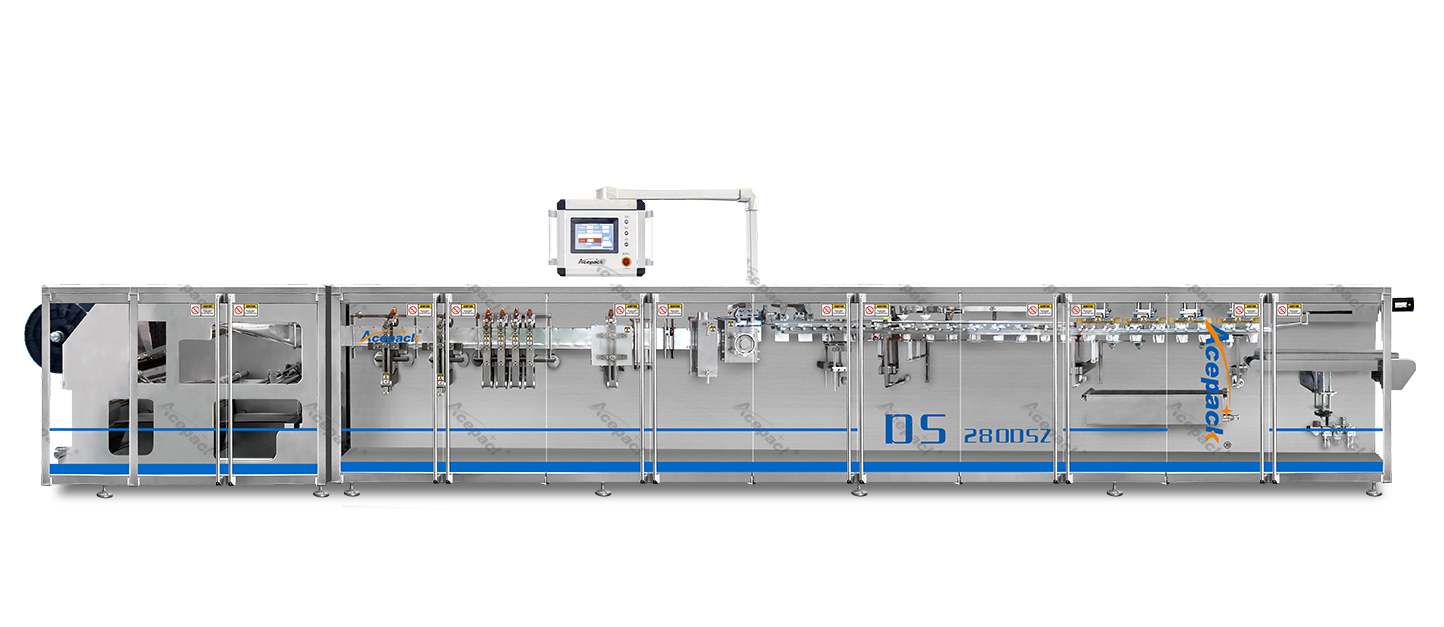

Zipper doypack Pouch Packaging Machine
This Zipper doypack Pouch Packaging Machine(retort pouch filling machine) is specially designed for the packaging of stand-up pouches with zipper sealing. The equipment is flexible and multi-purpose, which can effectively solve the application of finished bags from small size to large size, and can be widely used in powder, granule and other material packaging.
The packaging material of the zipper stand-up pouch packaging machine is composite material.
Product parameters
| Model | DS-140SZ |
DS-180SZ |
DS-240SZ | DS-280DSZ |
| Maximum Packing Volume | 300ml | 1200ml |
2000ml | 800ml |
| Max Pouch Size | 140mm*200mm | 180mm*260mm |
240mm*350mm | 140mm*260mm |
| Min Pouch Size | 60mm*90mm | 90mm*110mm |
100mm*120mm | 90mm*110mm |
| Packing Speed | 40-60ppm | 40-60ppm |
30-60ppm | 80-120ppm |
| Air Consumption | 200NL/min | 200NL/min |
300NL/min | 700NL/min |
|
Input Power | 8kw | 8.3kw |
10kw | 12kw |
| Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 1800kg | 2300kg | 2800kg | 4100kg |
| L*W*H | 4780*970*1400mm | 6970*1100*1400mm | 7500*1250*1400mm | 7800*1100*1400mm |
| （1） Zipper Mechannism | （7） Bottom Seal |
（13）Vertical Cooling II |
（19）Duplex Pouch Opening | （25）Top Seal II |
| （2） Film Unwind | （8） Vertical I |
（14）Tear Notch |
（20）Air Flushing | （26）Finished Product |
| （3） Bottom Hole Punching | （9） Vertical II |
（15）Photocell |
（21）Filling I | （27）Outlet |
| （4） Pouch Forming | （10）Vertical III |
（16）Servo Advannce |
（22）Filling II | |
| （5） Film Guide | （11）Vertical IV |
（17）Cutting |
（23）Pouch Stretching | |
| （6） Zipper Sealing | （12）Vertical Cooling I | （18）Pouch Catching | （24）Top Seal I |
