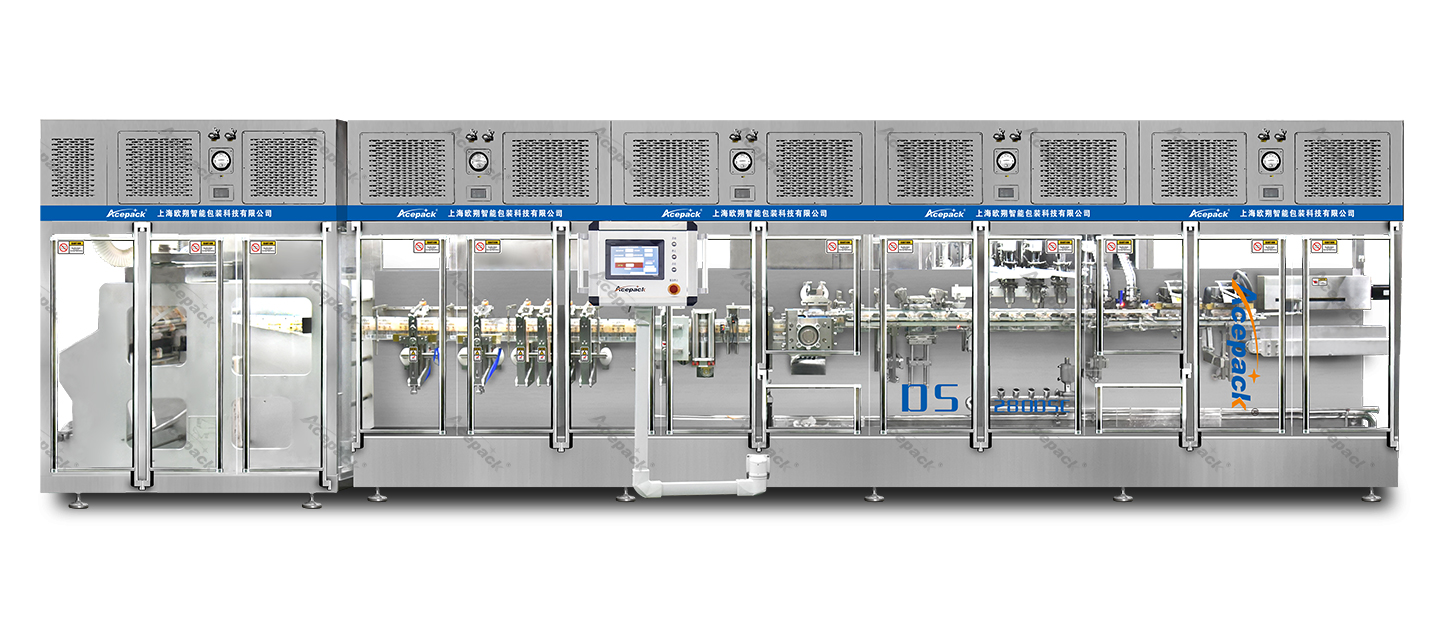

Ultra Clean Dairy Packing Machine
Usage: Dairy products like Low temperature milk, yogurt, and milk powder, filling in pouches.
Features:
*Horizontal form fill seal doypack or spouted doypack filling packaging.
*Ultra-clean filling
*Save 30%-50% of packaging costs
*Spout independently sealed, which can avoid deformation and damage caused by the screw cap. *Easy to clean and maintain.
*Can be operated by one person, which greatly reduces labor costs.
Product parameters
| Model | DS-280DSC | DS-280DSXC | SG-360DC | SG-240 | DS-180DSB |
| Maximum Packing Volume | 800ml | 800ml | 1500ml | 2000ml | 150ml |
| Max Pouch Size | 140mm*260mm | 140mm*260mm | 180mm*310mm | 240mm*340mm | 90mm*180mm |
| Min Pouch Size | 90mm*110mm | 110mm*120mm | 90mm*110mm | 100mm*120mm | 60mm*100mm |
| Packing Speed | 80-120ppm | 80-120ppm | 60-120ppm | 60-120ppm | 80-120ppm |
| Air Consumption | 800NL/min | 800NL/min | 900NL/min | 400NL/min | 600NL/min |
Input Power | 11.5kw | 13.2kw | 6.5kw | 5.5kw | 8.3kw |
| Working Power Supply | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 4350kg | 5250kg | 3300kg | 2500kg | 2200kg |
| L*W*H | 7900*1100*1400mm | 9400*1100*1400mm | 4500*970*1400mm | 3400*1010*1400mm | 5630*970*1400mm |
| （1） Film Unwind | （7）Vertical Seal II |
（13）Pouch Catching |
（19）Cooling Mechanism | （25）Filling IV |
| （2） Bottom Hole Punching | （8）Vertical Cooling I |
（14）Pouch Sorting |
（20）Pouch Opening | （26）Pouch Stretching |
| （3） Pouch Forming | （9）Vertical Cooling II |
（15）Cutting |
（21）Air Flushing | （27）Heat Sealing |
| （4） Film Guide | （10）Photocell |
（16）Pouch Opening |
（22）Filling I | （28）Cool Sealing |
| （5）Bottom Seal | （11）Servo Advance |
（17）Vibrator |
（23）Filling II | （29）Finished Product |
| （6）Vertical Seal I | （12）Cutting | （18）Spout Adding | （24）Filling III | （30）Output |
